Synthesis gas composition analysis is of great significance to the metallurgical
industry. The system can realize accurate quantitative analysis of Synthesis gas
components by gas chromatograph after using the suitable detector, analytical
chromatographic column and valve flow path.
Features of Analyzer:
- single TCD channel or dual TCD channel can be selected.
- Packed column system, stable and reliable.
Synthesis gas Analyzer I
Instrument configurations:
Two valves and three columns (packed column) / single TCD
Note: this system can be equipped to SHIMADZU and AGILENT host system
Sample:
Synthesis gas or similar component sample
Target compounds:
O2, N2, CO, CO2, CH4, C2H6 and C2H4
Detection sensitivity:
Permanent gas >0.01%; Hydrocarbons >0.01%

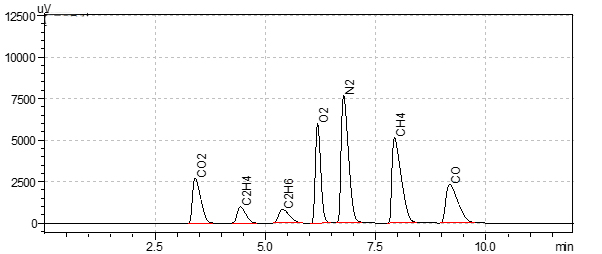

Typical chromatogram:
Typical flow diagram：
